Factory Lighting Layout: Light Levels, Ceiling Height & Spacing

Before you pick a fixture, you need to know how much light the space requires and where it has to go. Those two numbers — the light level on the work plane and the spacing that achieves it — drive everything else in an industrial lighting design. This guide covers the OSHA minimums, the ANSI/IES targets by task type, lumen output and spacing by ceiling height, and the control systems that keep the whole thing efficient.

If you already know your light levels and need to choose between fixture types instead, see our guide to factory light fixtures, which covers high bay, explosion-proof, vapor tight and task lighting.

By Warehouse Lighting

OSHA & ANSI/IES Standards

Ceiling Height & Spacing

Designing the Layout

LED vs Metal Halide vs Fluorescent

Controls & Sensors

Frequently Asked Questions

Industrial Lighting Standards

The Occupational Safety and Health Administration (OSHA) oversees and regulates workplace safety standards, which includes establishing minimum industrial lighting standards for manufacturing settings and more. When deciding on factory lighting for your warehouse or workspace, the first step is to know your requirements.

OSHA Minimum Industrial Lighting Standards

OSHA defers to the lighting recommendations of the American National Standard Institute (ANSI) and Illuminating Engineering Society (IES) for all settings except construction and shipyards. For those environments, OSHA provides the following minimum lighting standards:

30 foot-candles: Offices, first-aid stations and infirmaries
10 foot-candles: General shops and construction plants
5 foot-candles: General construction areas, warehouses, walkways, corridors, exits and other indoor spaces
5 foot-candles: Underground work areas, including shafts and tunnels (unless drilling, mucking or scaling is being performed, which require 10 foot-candles)
3 foot-candles: Waste areas, loading platforms, active storage areas, field maintenance areas, refueling areas, concrete placement and excavation sites

These are legal minimums, not design targets. A floor lit to exactly 5 foot-candles is compliant and still uncomfortable to work in — most manufacturing floors are designed well above the minimum for the area they sit in.

ANSI/IES Lighting Recommendations

The ANSI/IES standard provides general guidelines measured in lux based on the type of work being performed in a particular workstation. These lighting recommendations include:

100-200 lux: Spaces not typically used for visual tasks, such as lobbies
200-500 lux: Spaces used for large-scale visual tasks or those needing high contrast
500-1,000 lux: Spaces used for small-scale visual tasks or those needing medium contrast
1,000-2,000 lux: Spaces used for very small-scale visual tasks or those needing low contrast

The American National Standard Institute also recommends no more than 500 lux for environments primarily used for computer tasks.

While the quantity of factory lights is obviously important, the ANSI/IES also offers guidelines for the quality of light, specifically as it relates to the flicker and glare produced by the lighting source. Because poor light quality can contribute to eye strain, headaches, fatigue and general eye discomfort, efforts should be taken to minimize flicker and glare. These include regularly replacing bulbs and ballasts, upgrading to non-flickering light sources such as LED, and properly positioning light fixtures relative to workspaces.

Uniformity deserves as much attention as the average level. A floor averaging 40 foot-candles with deep shadows between fixtures performs worse in practice than one averaging 30 evenly, because the eye adapts to the bright patches and the dark ones become harder to see into.

Ceiling Height & Spacing

Ceiling height is the single biggest determinant of how many fixtures you need and how powerful they have to be. Most factories have higher ceilings than other commercial buildings. When measuring, take the distance from the ceiling to the floor and from the ceiling to the work plane — the second is the one that matters for light level calculations, and on a factory floor with benches or machinery they can differ by three feet or more.

Why Height Changes Everything

Light falls off with the square of the distance, so a fixture at 40 feet delivers dramatically less light to the floor than the same fixture at 20 feet. Taller ceilings therefore need higher lumen output and allow wider spacing, because the beam has more distance to spread before it reaches the work plane.

A rough starting point is one foot-candle per square foot of space, adjusted for how much natural and accent light the area also receives. To hit your target you need the right fixture output combined with the right spacing — either one alone will not do it.

Go by Lumens, Not the Product Name

It is worth knowing that fixture naming is inconsistent across the industry. The same product may be called a high bay by one manufacturer and a low bay by another, and UFO-style fixtures in particular are frequently labelled high bay regardless of the height they are rated for. Our own low bay range includes fixtures named as high bays for exactly that reason.

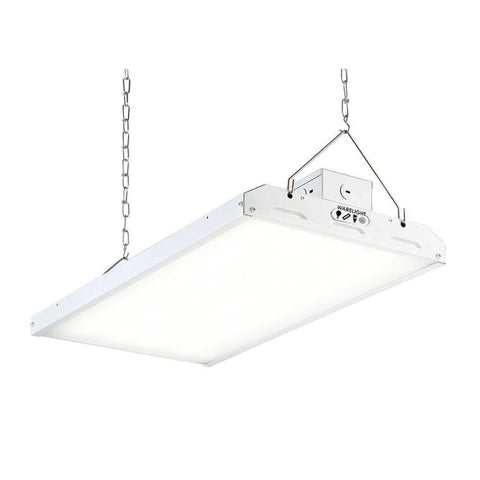

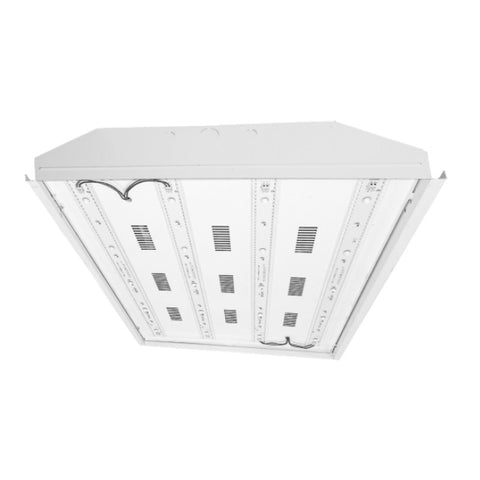

So do not specify from the product name. Work from the lumen output and the rated mounting height on the spec sheet — those are the numbers that determine whether a fixture will light your floor. Browse high bay fixtures and low bay fixtures, or see our factory light fixtures guide for how the types differ in practice.

Choosing the Light Source

Three light sources are still found in industrial applications: metal halide, fluorescent and LED. Each has trade-offs worth understanding, particularly if you are costing a retrofit against keeping what you have.

Metal Halide

Metal halide was the industrial standard for decades and still performs reasonably. It reaches useful lumen output and renders color acceptably. The drawbacks are that it is not dimmable, it needs warm-up time after a power interruption, output degrades noticeably over the lamp's life, and it contains mercury — which complicates disposal.

Fluorescent

Fluorescent offers a lower up-front price and suits aisles because it comes in tubes. But it does not match LED on efficacy or lumen output, and the lamps and ballasts plus the energy to run them cost more over the fixture's life than LED does. Fluorescent is also being phased out — several states have restricted lamp sales, so replacement tubes will get progressively harder to source.

LED

LED has taken over most industrial territory. Higher output per watt, no mercury, no warm-up, dimmable, cooler running, and far longer life. The only real drawback is up-front cost, and on an industrial floor the maintenance saving usually settles that argument on its own — re-lamping a fixture at 30 feet means a lift, a cleared floor area and often after-hours labor.

Designing Your Factory Lighting Layout

The goal of a layout is to generate the target light level across the floor, given the size of the space and how it is used. Once you know the foot-candles or lux you need, the fixture output and spacing follow from the ceiling height. These are the ranges we work from when specifying:

Ceiling Height	Lumen Output	Recommended Spacing
10 feet	12,000-21,000 lumens	10-15 feet apart
20 feet	22,000-35,000 lumens	15-20 feet apart
30 feet	35,000-40,000 lumens	20-30 feet apart
40 feet	40,000+ lumens	30-40 feet apart

Treat those figures as a first pass. Wall reflectance, rack height, machinery obstructing the beam and the amount of daylight entering all shift the result, which is why a photometric layout is worth doing on any floor of real size — it models the actual space rather than an empty box.

Color Temperature and CRI

Color temperature is measured in Kelvin, with lower numbers reading warmer and higher numbers cooler. Most manufacturing floors sit at 4000K to 5000K, which reads neutral to cool and supports alertness. Colour rendering index matters where the work involves judging color or finish — inspection and quality control stations benefit from CRI 90 or above, while general floor areas are fine lower.

Fixtures with selectable CCT and wattage are worth considering on a phased fit-out, since one part number can cover several areas set differently.

Automated Lighting Control Systems

A good layout includes controls. Lighting controls let users switch or dim manually, and sensors automate it — bringing light up when activity is detected and dropping to a reduced level when an area is empty. On a large floor with uneven occupancy, that is where most of the operational saving comes from.

Controls come as dimmers, timers, and motion, occupancy and photosensors. Used together they deliver the efficiency a fixture upgrade alone cannot.

Types of LED Lighting Controls and Sensors

LED responds to control far better than HID, which can take several minutes to reach full output and cannot be switched frequently without shortening lamp life. That difference is what makes occupancy sensing practical on an industrial floor at all. Many utilities offer rebates for installing controls alongside a fixture upgrade. Common options include:

Passive infrared ceiling sensors
Ultrasonic ceiling sensors
High bay sensors
Motion sensors and timer switches
Occupancy sensors
Photo and daylight harvesting sensors
Wall control and wall switch sensors

One thing to plan around: check the dimming protocol on each fixture's spec sheet — commonly 0-10V on commercial and industrial fixtures — and match it to the control system going in. A mismatch shows up as flicker or buzz at the bottom of the dimming range, and it surfaces after installation rather than before.

Frequently Asked Questions About Factory Lighting Layout

For fixture selection by environment — including hazardous locations and wash-down areas — see our factory light fixtures guide.

How many foot-candles does OSHA require in a factory?

For construction and shipyard settings OSHA sets specific minimums: 30 foot-candles for offices and first-aid stations, 10 for general shops and construction plants, 5 for warehouses, walkways, corridors and exits, and 3 for waste areas, loading platforms and active storage. For all other settings OSHA defers to ANSI/IES recommendations. Treat these as legal floors rather than design targets — most working manufacturing floors are specified well above them.

How far apart should high bay lights be spaced?

Spacing scales with ceiling height because light spreads as it travels. The ranges we work from are 10 to 15 feet apart at a 10 foot ceiling, 15 to 20 feet at 20 feet, 20 to 30 feet at 30 feet, and 30 to 40 feet at 40 feet. Pair the spacing with the right lumen output — wider spacing needs a brighter fixture, and getting one right without the other leaves either dark gaps or wasted energy.

How many lumens do I need for a factory?

Lumen output scales with ceiling height. As a guide: 12,000 to 21,000 lumens at a 10 foot ceiling, 22,000 to 35,000 at 20 feet, 35,000 to 40,000 at 30 feet, and 40,000 or more at 40 feet and above. Work from the target light level and the floor area as well — a rough starting point is one foot-candle per square foot, adjusted for daylight and accent light. Wall reflectance, rack height and machinery blocking the beam all shift the result, so a photometric layout is worth doing on any floor of size.

What is the difference between a high bay and a low bay fixture?

In principle high bays are for taller ceilings and low bays for lower ones, but the naming is not applied consistently across the industry. The same fixture may be sold as a high bay by one manufacturer and a low bay by another, and UFO-style fixtures are often labelled high bay regardless of their rated mounting height. Rather than specifying from the product name, work from the lumen output and the rated mounting height on the spec sheet.

What color temperature is best for a factory floor?

Most manufacturing floors sit between 4000K and 5000K, which reads neutral to cool and supports alertness across a shift. Keep it consistent across the floor — mixing color temperatures in one space is immediately visible and makes a well-specified installation look unplanned. Where the work involves judging color or finish, such as inspection and quality control, specify CRI 90 or above as well.

Should I measure ceiling height or work plane height?

Both, and the difference matters. Fixture mounting height is measured to the ceiling, but light level requirements apply at the work plane — typically the bench or machine surface where the task happens. On a factory floor those can differ by three feet or more, and calculating to the floor when the work happens at bench height will overstate the light available where it is actually needed.

Need a Layout Rather Than a Rule of Thumb?

The tables above get you close, but a real floor has racks, machinery and daylight that a table cannot account for. Send us your dimensions and ceiling height and our specialists will run a free photometric layout showing fixture count, placement and the light levels you will actually achieve — before you order anything.
