LED hallway and corridor lighting are a great way to improve the look of your home while also providing increased safety and security. LED lights produce a bright, even light that is perfect for illuminating hallways and corridors. LED lights are also very energy efficient, saving you money on your electric bill. In addition, LED lights have a very long lifespan, so you won’t have to worry about replacing them for many years. If you are looking for a new way to light your home, LED hallway and corridor lighting is the way to go.
Troffer Retro Fit Wiring Harness
- Brand: Keystone Technologies
- Number of Lamps: 2, 3, 4, 6
- Requires single end powered LED tubes (not included)
Four Lamp Wiring Harness Shown
ITEM: KT-SOCKET-T8-U-S-2-W
Select ProductCirca 6 Inch LED Recessed Wafer Down Light, 1,030 Lumens, 13W, 120V, CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Brand: Keystone Manufacturing
- Wattage: 13W
- Voltage: 120V
- CCT Selectable/Lumens
- 2700K/950Lm
- 3000K/980Lm
- 3500K/1,010Lm
- 4000K/1,030Lm
- 5000K/1,015Lm
- CRI: >90
- Dimming: TRIAC
- Life: 50,000 hours
- Ratings: UL, Energy Star, Title 24, RoHS Compliant, Wet Locations
- Warranty: 5 Years
ITEM: KT-WDLED13-6B-9CSF-FDIM

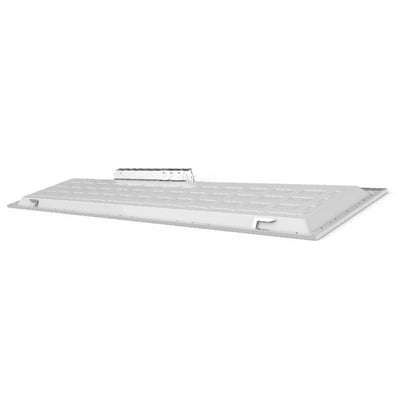

Select Product1 x 4 Foot Back Lit LED Flat Panel, 4600 Lumens, 20W/30W/40W Selectable, 120-277V, CCT Selectable 3500K/4000K/5000K
- Brand: Keystone Technologies
- Wattage Selectable: 20W/30W/40W
- Lumens: 2,400Lm-4,600Lm
- Voltage: 120-277V
- CRI: >80
- CCT Selectable: 3500K/4000K/5000K
- 0-10V dimmable
- Rated Life: 50,000Hrs
- Dimensions: L 47.71” x W 11.85” x D 1.37”
- Listings: DLC, cULus, Damp Locations
- Warranty: 5 Years
ITEM: KT-BPLED40PS-14-8CSA-VDIM /G2
Select Product2 x 4 Foot Back Lit LED Flat Panel, 6200 Lumens, 30W/40W/80W Selectable, 120-277V, CCT Selectable 3500K/4000K/5000K
- Brand: Keystone Technologies
- Wattage Selectable: 30W/40W/50W
- Lumens: 3,850Lm-6,200Lm
- Voltage: 120-277V
- CRI: >80
- CCT Selectable: 3500K/4000K/5000K
- 0-10V dimmable
- Rated Life: 50,000Hrs
- Dimensions: L 23.74” x W 47.71” x D 1.37”
- Listings: DLC, cULus, Damp Locations
- Warranty: 5 Years
ITEM: KT-BPLED50PS-24-8CSA-VDIM /G2
Select Product2 x 2 Foot Back Lit LED Flat Panel, 4500 Lumens, 20W/30W/40W Selectable, 120-277V, CCT Selectable 3500K/4000K/5000K
- Brand: Keystone Technologies
- Wattage Selectable: 20W/30W/40W
- Lumens: 2,400Lm-4,500Lm
- Voltage: 120-277V
- CRI: >80
- CCT Selectable: 3500K/4000K/5000K
- 0-10V dimmable
- Rated Life: 50,000Hrs
- Dimensions: L 23.74” x W 23.74” x D 1.37”
- Listings: DLC, cULus, Damp Locations
- Warranty: 5 Years
ITEM: KT-BPLED40PS-22-8CSA-VDIM /G2

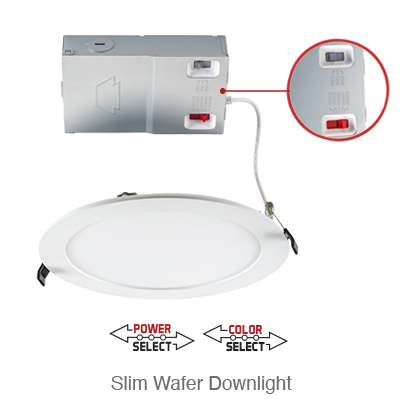

Select ProductCirca 8 Inch LED Slim Wafer Down Light, 1,960 Lumens, Wattage Selectable 14W/12W/23W, 120-277V, CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Brand: Keystone Manufacturing
- Wattage Selectable: 14W/18W/23W
- Voltage: 120V
- CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Lumens: 1,100Lm-1,920Lm
- CRI: >90
- Dimming: TRIAC
- Life: 50,000 hours
- Ratings: UL, Energy Star, Title 24, RoHS Compliant, Wet Locations
- Warranty: 5 Years
ITEM: KT-WDLED23PS-8A-9CSF-VDIM

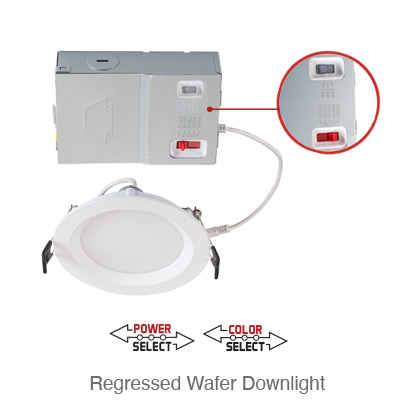

Select ProductCirca 6 Inch LED Regressed Wafer Down Light, 1,290 Lumens, Wattage Selectable 10W/12W/14W, 120-277V, CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Brand: Keystone Manufacturing
- Wattage Selectable: 10W/12W/14W
- Voltage: 120V
- CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Lumens: 850Lm-1,290Lm
- CRI: >90
- Dimming: TRIAC
- Life: 50,000 hours
- Ratings: UL, Energy Star, Title 24, RoHS Compliant, Wet Locations
- Warranty: 5 Years
ITEM: KT-WDLED14PS-6A-9CSF-VDIM
Select ProductCirca 4 Inch LED Slim Wafer Down Light, 870 Lumens, Wattage Selectable 8.5W/9.5W/10.5W, 120-277V, CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Brand: Keystone Manufacturing
- Wattage Selectable: 8.5W/9.5W/10.5W
- Voltage: 120V
- CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Lumens: 650Lm-870Lm
- CRI: >90
- Dimming: TRIAC
- Life: 50,000 hours
- Ratings: UL, Energy Star, Title 24, RoHS Compliant, Wet Locations
- Warranty: 5 Years
ITEM: KT-WDLED10.5PS-4A-9CSF-VDIM
Select ProductCirca 6 Inch LED Gimbal Down Light, 1,050 Lumens, 12W, 120V, CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- Brand: Keystone Manufacturing
- Wattage: 12W
- Voltage: 120V
- CCT Selectable/Lumens
- 2700K/950Lm
- 3000K/1,000Lm
- 3500K/1,035Lm
- 4000K/1,050Lm
- 5000K/1,035Lm
- CRI: >90
- Dimming: TRIAC
- Life: 50,000 hours
- Ratings: UL, Energy Star, Title 24, RoHS Compliant, Wet Locations
- Warranty: 5 Years
ITEM: KT-WDLED12-6A-9CSF-FDIM-G
Select ProductAbout Hallway LED Light Fixtures
Please call us for more information on LED Hallway And Corridor Lighting
