LED Lighting Ballast & Drivers

In a lighting system, the ballast /driver regulates the current to the lamps and provides sufficient voltage to start the lamps. Without a ballast to limit its current, a lamp connected directly to a high voltage power source would rapidly and uncontrollably increase its current draw and within a second the lamp would overheat and burn out. At Warehouse-Lighting.com, you can find 1000 watt energy-efficient ballasts for your project, whether it’s residential, commercial or industrial. These high-quality options have all been manufactured with the highest standards for a long-lasting solution. They are affordable, easy to implement, and will last for years.

13 products
Sale
LED Emergency Backup Driver and Battery, 5 Watt Output

  • Brand: Keystone Technologies
  • Input Voltage: 120-277Vac
  • Power Factor: >0.9 under 120~277Vac input
  • Max. input Current: 50mA @120V, 35mA @240V, and 30mA @277V
  • Max. Output Power: 5W Constant
  • Rated Output Current: 250mA @ 20Vdc, 86mA @ 58Vdc
  • Output Voltage: 20 –60Vdc Class 2 compliant
    Remarks: the output power is valid for output voltage ≤ 58V; above that power will drop
  • Emergency Runtime: Minimum 90 Min
  • Ratings: cULus, RoHS
  • Warranty: 5 years
Product Badge Image 1
Product Badge Image 3
Product Badge Image 4

ITEM: KT-EMRG-LED-5C-500

Regular price$145.20

$121.00

Select Product
Sale

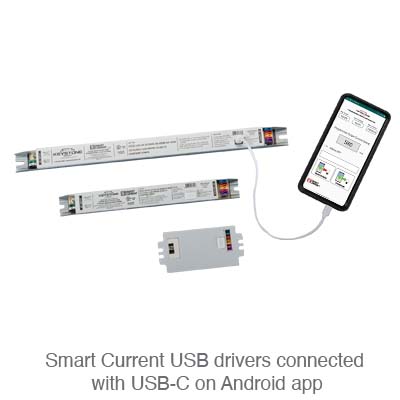

Programmable LED Driver, 100W, 1500-3kmA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 100W
  • Output Current: 1500-3kmAA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • -40°C/–40°F to 50°C/122°F operating temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-100-UV-SC3000-56-VDIM-U4 /USB

Regular price$145.09

$72.55

Select Product
Sale
Programmable LED Driver, 50W, 470-1400mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 50W
  • Output Current: 470-1400mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • 20°C/-4°F to 50°C/122°F Operating Temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-50-UV-SC1400-56-VDIM-U7 /USB

Regular price$105.09

$52.55

Select Product
Sale

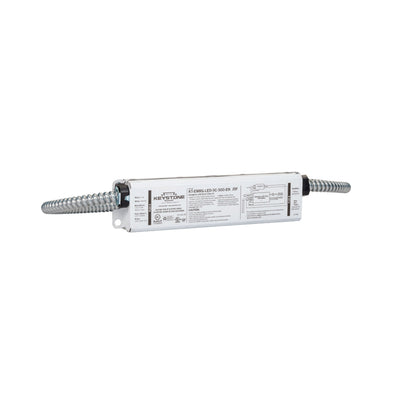

Constant Wattage LED Emergency Backup Driver, 5 Watt Output, Dual Flex Conduit, 120-277V Input

  • Brand: Keystone Technologies
  • Input Voltage: 120-277Vac
  • Power Factor: ≥0.5
  • Max. Current: 0.050A @ 120V
  • Max. Output Power: 5 Watt
  • Rated Output Current: 250mA–86mA
  • Output Voltage: 20~60Vdc
  • Dual Flex Conduit
  • Emergency Runtime: Minimum 90 Min
  • Listing: cULus, RoHS
  • 5 Year Warranty
Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KT-EMRG-LED-5C-500-EN /DF

Regular price$186.00

$155.00

Select Product
Sale

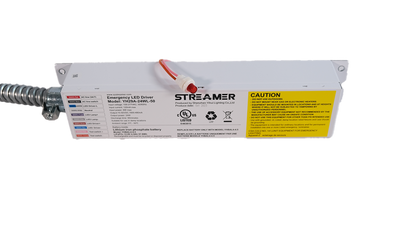

LED Emergency 90-min Driver for CLHB Series

  • Brand: WareLight
  • Driver for CLHB Series
  • Input Voltage: 100-277Vac
  • Hz: 50-60Hz
  • Output Voltage/Power (Emergency Mode): 20-50Vdc 24W cp
  • Battery Pack: LiFePO4 12.8V 4.5Ah
  • Duration: 90 Minutes
  • Dimensions: 12..9" x 2.6" x 2.2"

ITEM: CLHB-EM-24W

Regular price$146.99

$121.99

Select Product
Sale
LED Emergency 90-min Driver for BLFP Series

  • Brand: WareLight
  • Driver for BLFP Series
  • Input Voltage: 100-277Vac
  • Hz: 50-60Hz
  • Output Voltage/Power (Emergency Mode): 15-50Vdc 8W cp
  • Battery Pack: LiFePO4 6.4V 3.2Ah
  • Duration: 90 Minutes
  • Dimensions: 17.9" x 1.18" x 0.82"
  • Includes Mounting Brackets for BLFP Series Panels
  • Installation Services Available: Contact us for pricing details.

ITEM: BLFP-EM-8W

Regular price$146.99

$121.99

Select Product
Sale

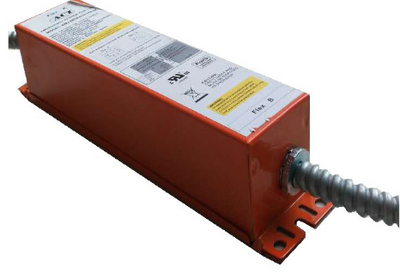

LED Emergency 90-min 25W Driver for HBLED Series

  • Brand: WareLight
  • Driver for HBLED Series
  • Input Voltage: 90~305VAC 50/60Hz
  • Input Current: 150mA MAX
  • Recharge Power: 8W MAX
  • Output Current: 100~1050mA
  • Output Voltage: 11~56V
  • Output Power: 25W MAX
  • Emergency Runtime: 90 min @ 25W & 10~50C
  • Recharge time required: 48 Hours MAX
  • Installation Services Available: Contact us for pricing details.
  • Ratings: RoHS
  • Warranty: 5 years
Product Badge Image 1
Product Badge Image 3
Product Badge Image 4

ITEM: HBLED-EM-25W

Regular price$179.99

$149.99

Select Product
Sale
Programmable LED Driver, 85W, 500-2600mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 85W
  • Output Current: 500-2600mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • 20°C/-4°F to 50°C/122°F Operating Temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-85-UV-SC2600-56-VDIM-U4 /USB

Regular price$126.00

$63.00

Select Product
Sale
Programmable LED Driver, 40W, 470-1400mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 40W
  • Output Current: 470-1400mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • 20°C/-4°F to 50°C/122°F Operating Temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-40-UV-SC1400-56-VDIM-W1 /USB

Regular price$103.27

$51.64

Select Product
Sale
Programmable LED Driver, 30W, 350-1050mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 30W
  • Output Current: 350-1050mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • 20°C/-4°F to 50°C/122°F Operating Temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-30-UV-SC1050-56-VDIM-U7 /USB

Regular price$100.73

$50.36

Select Product
Sale
Programmable LED Driver, 25W, 420-1250mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 25W
  • Output Current: 420-1250mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • –40°C/–40°F to 50°C/122°F operating temperature
  • CULUS Listed, ROHS


Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-25-UV-SC1250-56-VDIM-W1 /USB

Regular price$98.91

$49.45

Select Product
Sale
Programmable LED Driver, 20W, 200-730mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 20W
  • Output Current: 200-730mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 60 Hz
  • –40°C/–40°F to 50°C/122°F operating temperature
  • Warranty: 5 Years
  • CULUS Listed, ROHS
Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-20-UV-SC730-56-VDIM-AF4 /USB

Regular price$96.55

$48.27

Select Product
Sale
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

  • Brand: Keystone Technologies
  • Total Power: 12W
  • Output Current: 120 –500mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • CULUS Listed, ROHS
Product Badge Image 1
Product Badge Image 2
Product Badge Image 3

ITEM: KTLD-12-UV-SC500-56-VDIM-AF1 /USB

Regular price$84.00

$42.00

Select Product
