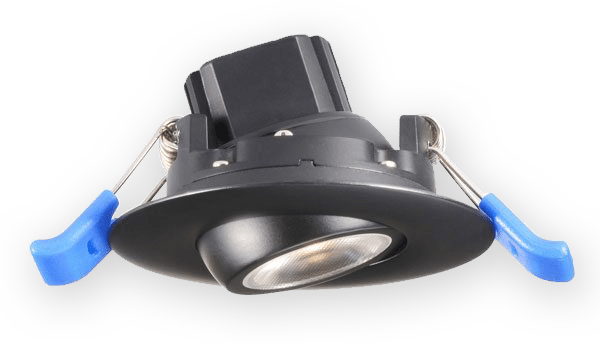

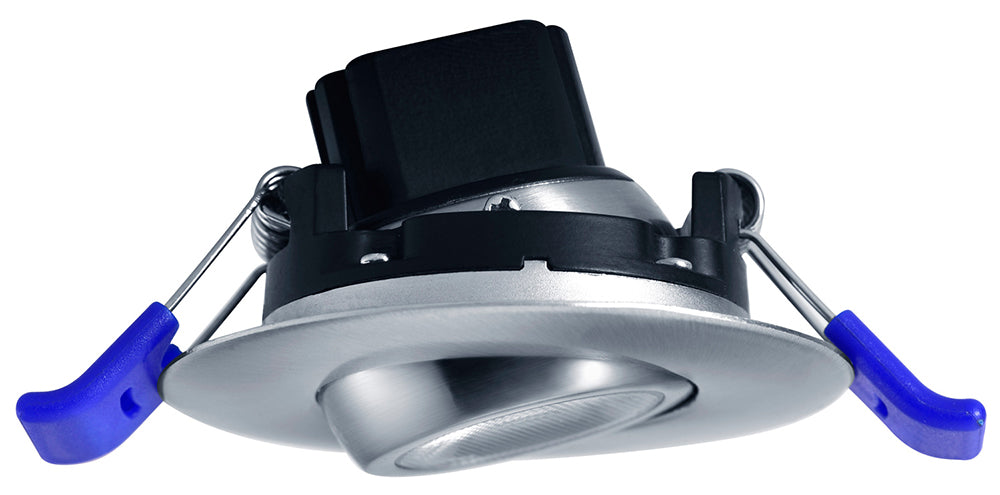

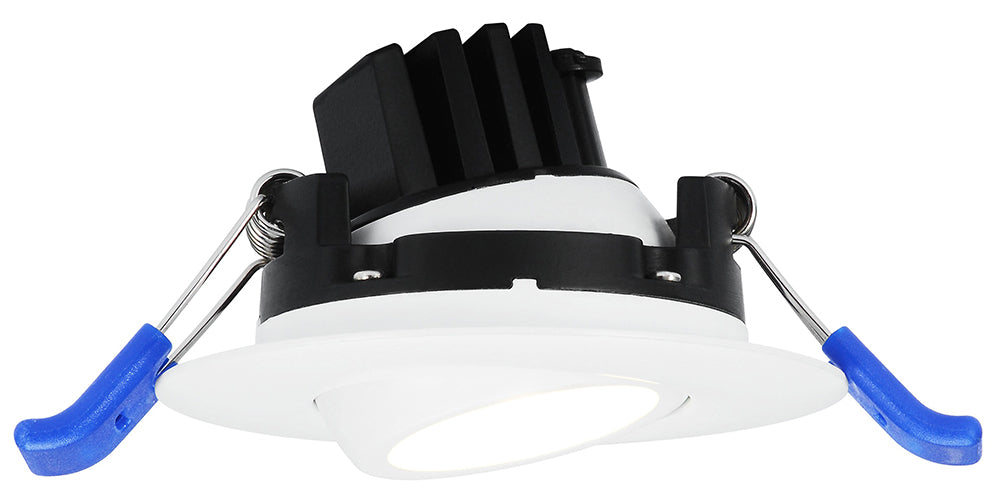

2″ Round Eyeball Gimbal LED, 5.5W, Multiple CCT and Finishes

Product Description

CONSTRUCTION:
2″ Eyeball Gimbal fixture with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.

MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if the driver is next to the fixture.

• Default Driver: 120V input Triac Dimmable with most CL dimmers
• Optional Driver: 120V-347V input 0-10V Dimmable
• Energy Used: 5.5W
• Power factor: > 0.95
• Beam Angle: 24° Beam with 20° tilt and 360° rotation
• Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K
• Light output: Warm White 450 lm, Soft White 490 lm, Bright White 500 lm, Neutral White 530 lm, and Daylight White 550
• CRI 90+
• Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
• Rated: Type IC (Direct Contact with Insulation), Energy Star, T24, Air-Tight

DIMENSIONS:

• ID 2″, OD 2 1/2″; Thickness 1 1/2″
• Cut out: 2″ 1/8″
• Junction Box Dimensions (with driver inside): 3 3/4″ x 2″ x 1 3/4″

Suitable for wet locations and soffit installations.
