20A Standard Power Pack for Occupancy Sensors, Color: Gray
  • Spec Sheet Download
    • ×
    Request Installation Instructions

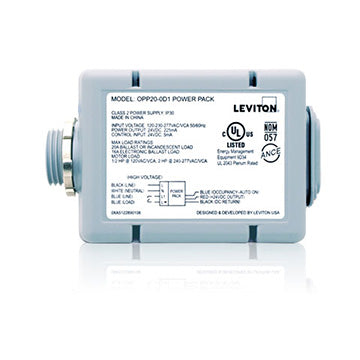

20A Standard Power Pack for Occupancy Sensors, Color: Gray

ITEM: OPP20-D2
Brand: Leviton
UPC: 07847763403
Leave a Review
$22.00 $61.79 64% Savings
/

Extra savings for bulk purchases!

×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

OPP20-D2


Product Details

Clearance Item - All Sales Final

  • First true industry-exclusive fail safe design assures lights ON meeting life safety requirements of NFPA 101
  • Robust power pack meets intense plug load control requirements of CA Title 24/ASHRAE 90.1
  • Industry exclusive Switched Daylighting Power Pack models for use with Wall Switches, Occupancy Sensors and Photocells
  • Robust and reliable mechanical latching relays specifically designed to operate LED s and high inrush electronic ballast loads
  • Surpasses industry standards for short circuit protection (NEMA 410 16 Amp ballast overload testing)
  • Tested to exceed 1.5 million switching cycles under standard load
  • Built in manual ON switching control to meet CA Title 24 standards
  • Models support a wide range of applications including switched daylighting, occupancy sensing control, bi-level switching, and metering/mechanical applications
  • Overloaded at 16A

  • Usually Ships in

    1 to 2 Business Days

  • QUESTIONS? Let us help!

Product Description

Features include Auto ON, Manual ON, Local Switch, Latching Relay; Line Voltage Input: 120/208/220/230/240/277V, 50/60Hz; Low Voltage: Input-24VDC, 2mA, Output-24VDC, 225mA. Housing: 1/2" Threaded nipple w/locknut (fits on or in a 4" sqr box), RoHS Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant.

The Leviton OPP20 Super Duty Power Pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today's challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management.

Product Features

Color: Grey
Sensor Type: Power Pack
Product Line: OPP20
Mechanical Specifications
Relay Type: Latching
Neutral Wire Connection: Required
Electrical Specifications
Voltage: 120/230/277 VAC
Frequency: 50/60Hz
Standards and Certifications
Title 24 Compliant: Yes

Product Description

Features include Auto ON, Manual ON, Local Switch, Latching Relay; Line Voltage Input: 120/208/220/230/240/277V, 50/60Hz; Low Voltage: Input-24VDC, 2mA, Output-24VDC, 225mA. Housing: 1/2" Threaded nipple w/locknut (fits on or in a 4" sqr box), RoHS Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant.

The Leviton OPP20 Super Duty Power Pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today's challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management.

Product Features

Color: Grey
Sensor Type: Power Pack
Product Line: OPP20
Mechanical Specifications
Relay Type: Latching
Neutral Wire Connection: Required
Electrical Specifications
Voltage: 120/230/277 VAC
Frequency: 50/60Hz
Standards and Certifications
Title 24 Compliant: Yes
