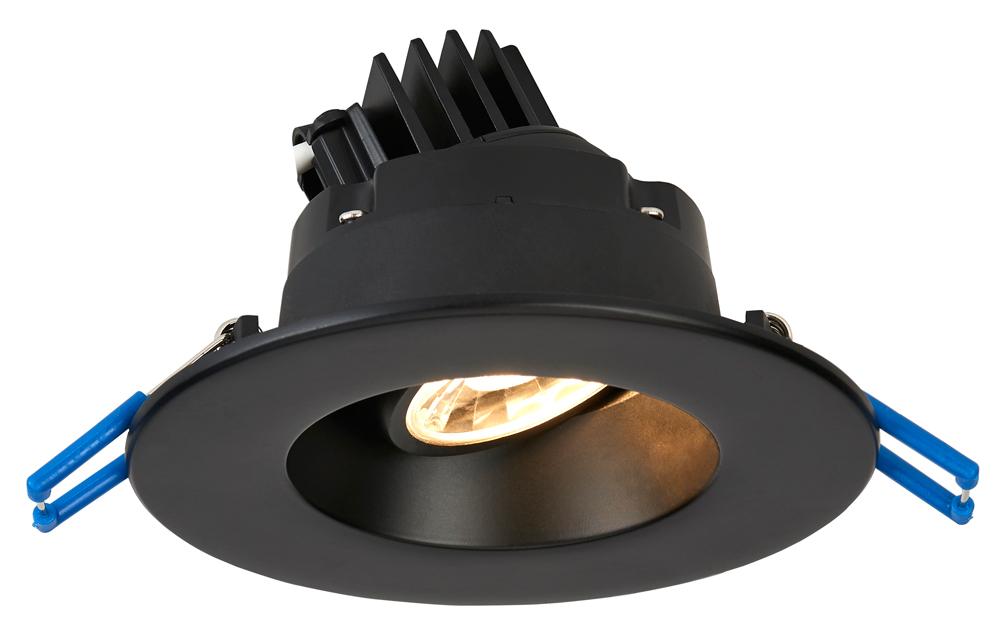

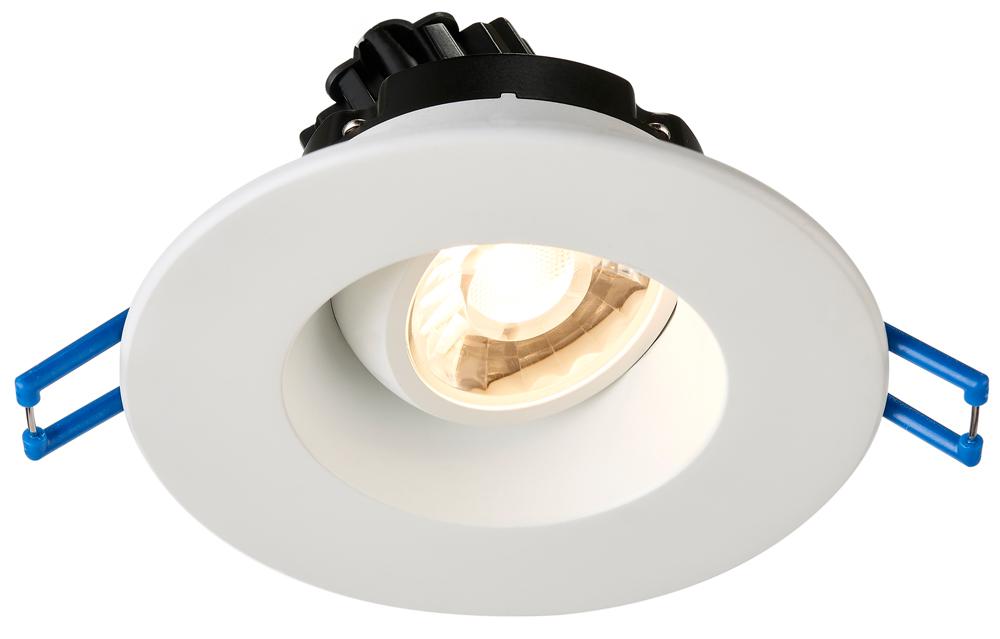

3″ Round Regressed Gimbal LED, 7.5W, Selectable CCT and Multiple Finishes

Product Description

CONSTRUCTION:
Round 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

• Default Driver Input Voltage: 120V AC (Dimmable)
• Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
• Power factor: > 0.98
• Energy Used: 7.5W
• Halogen equivalent: 50W
• Beam Angle: 38° or 15° Beam with 20° tilt and 360° rotation
• Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, and Daylight White 5000K, 5CCT user-selectable 2700K to 5000K
• Light output: Warm White 580 lm, Soft White 600 lm, Bright White 620 lm, Neutral White 630 lm and Daylight White 650 lm
• CRI: 90 +
• Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
• Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

• ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
• Cut out: 3 1/4″ to 3 1/2″
• Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.
