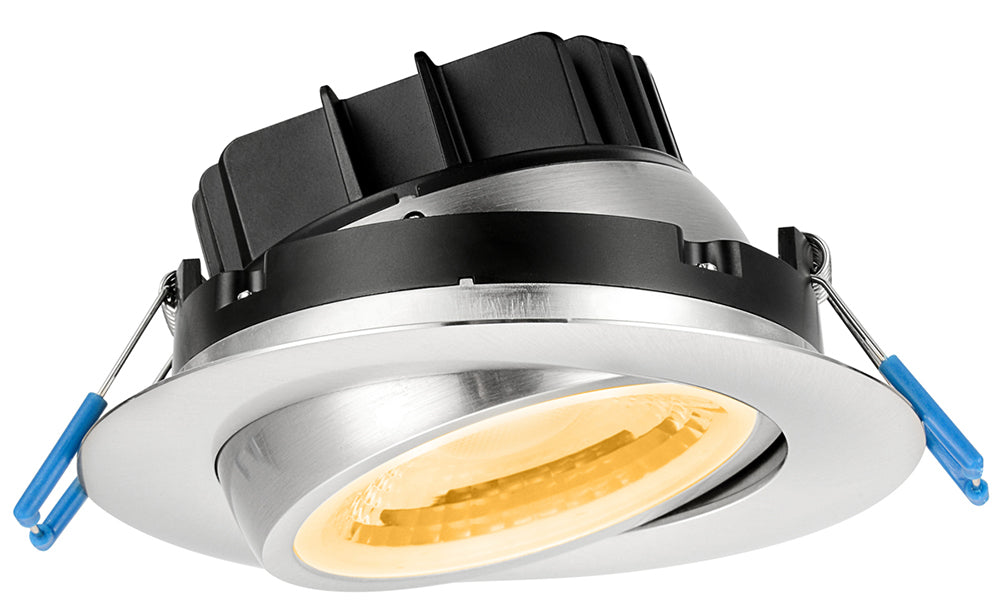

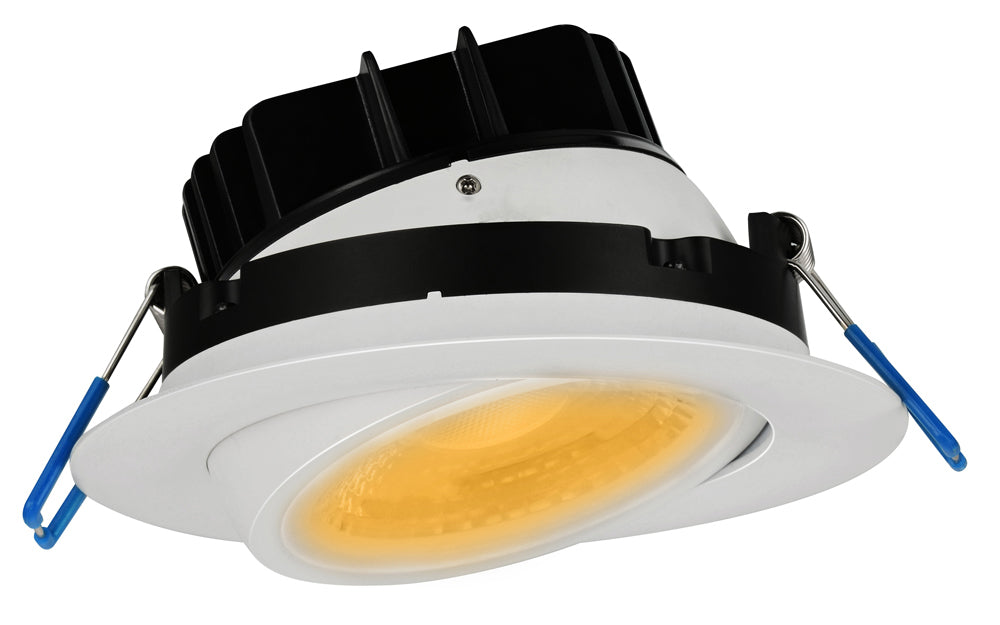

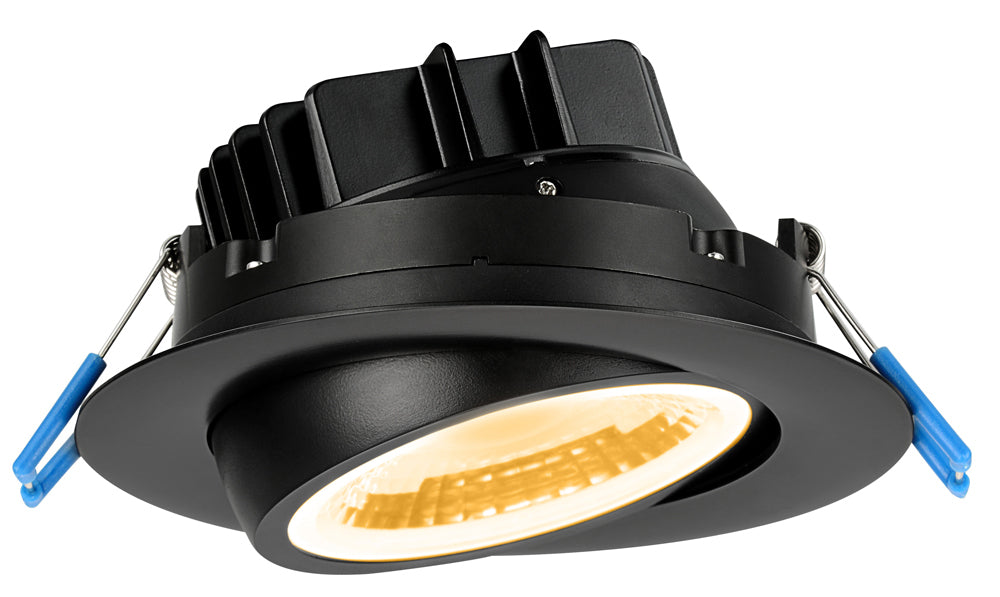

4″ Round Eyeball Gimbal LED, 11.4W, Multiple CCT and Finishes

Product Description

CONSTRUCTION:
Round 4″ Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.

MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 2 1/2″.

• Default Driver: 120V – Triac Dimmable with most CL dimmers
• Optional Driver: 120V-347V 0-10V Dimmable
• Energy Used: Regular Version 11.4W or High Output Version 15W
• Beam Angle: 38° Beam with 20° tilt and 360° rotation
• Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4100K, Daylight White 5000K, Dim to Warm 3000K to 2000K, 5CCT user-selectable 2700K to 5000K
• Light output 11.4W: Warm White 960 lm, Soft White 1000 lm, Bright White 1020 lm, Neutral White 1050 lm, Daylight White 1100 lm, Dim to Warm 800 lm
• Light output 15W: Warm White 1100 lm, Soft White 1200 lm, Bright White 1250 lm, Neutral White 1300 lm, Daylight White 1400 lm, Dim to Warm 900 lm
• CRI 90+
• Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
• Rated: Type IC (Direct Contact with Insulation), Energy Star (except Dim to Warm and 5CCT), Air-Tight

DIMENSIONS:

• ID 4″; OD 5″; Thickness 2 1/4″
• Cut out: 4″ to 4 1/4″
• Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
• Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG

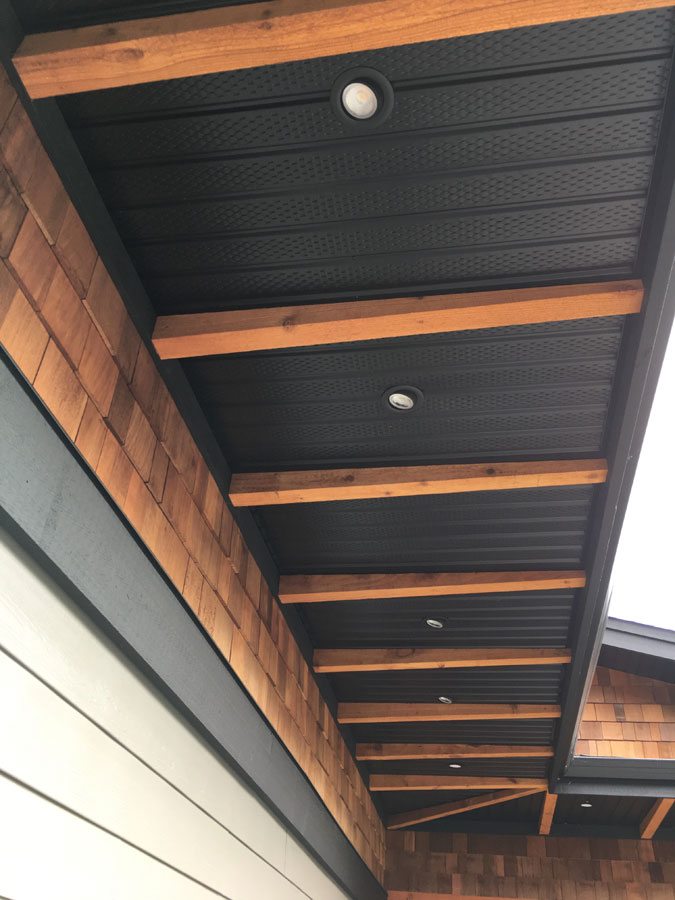

Suitable for wet locations and soffit installations.
