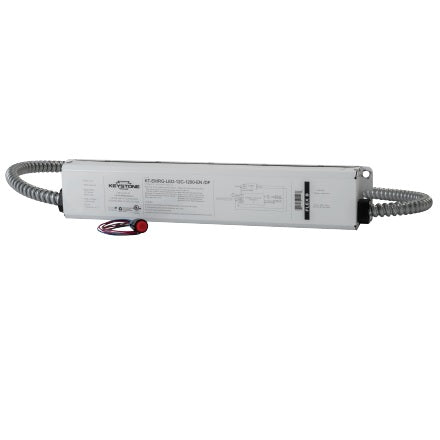

Constant Wattage LED Emergency Backup Driver, 12 Watt Output, Dual Flex Cables, California Compliant

Constant Wattage LED Emergency Backup Driver, 12 Watt Output, Dual Flex Cables, California Compliant

ITEM: KT-EMRG-LED-12C-1200-EN /DF
Brand: Keystone Technologies
UPC: 890949019900
Leave a Review
$235.82 $282.98 17% Savings
/

Extra savings for bulk purchases!

×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

KT-EMRG-LED-12C-1200-EN /DF


Product Details
  • Brand: Keystone Technologies
  • Input Voltage: 120–277Vac ±10%
  • Power Factor: ≥0.5
  • Max. Current: 0.050A @ 120V
  • Max. Output Power: 12 Watt
  • Rated Output Current: 600mA–250mA
  • Emergency Runtime: Minimum 90Min
  • Output Voltage: 20~54Vdc
  • Listing: cULus, RoHS
  • 5 Year Warranty

  • Usually Ships in

    3-5 Business Days

  • QUESTIONS? Let us help!

Product Description

  • Drives LED loads at 12W (nominal) for a minimum of 90 minutes
  • Meets FCC Part 15 (Class B) consumer limits
  • Short circuit overload and open load protection
  • Suitable for dry and damp locations
  • Evaluated to UL 924 standards
  • Operating temperature: 0ºC/32ºF to 55ºC/131ºF
  • Input frequency: 50/60 Hz
  • Test switch/Charging indicator light and wall plate included
  • LiFePO4 battery: 3 cells, 9.6Vdc
  • Dual flex conduit fits into ½" knockouts
  • Complies with CEC efficiency standards
  • Class 2 output
  • Listed for field or factory installation: UL 924 and CSA C22.2 no. 141 emergency lighting compliant

Product Description

  • Drives LED loads at 12W (nominal) for a minimum of 90 minutes
  • Meets FCC Part 15 (Class B) consumer limits
  • Short circuit overload and open load protection
  • Suitable for dry and damp locations
  • Evaluated to UL 924 standards
  • Operating temperature: 0ºC/32ºF to 55ºC/131ºF
  • Input frequency: 50/60 Hz
  • Test switch/Charging indicator light and wall plate included
  • LiFePO4 battery: 3 cells, 9.6Vdc
  • Dual flex conduit fits into ½" knockouts
  • Complies with CEC efficiency standards
  • Class 2 output
  • Listed for field or factory installation: UL 924 and CSA C22.2 no. 141 emergency lighting compliant
