Product Description
CONSTRUCTION:

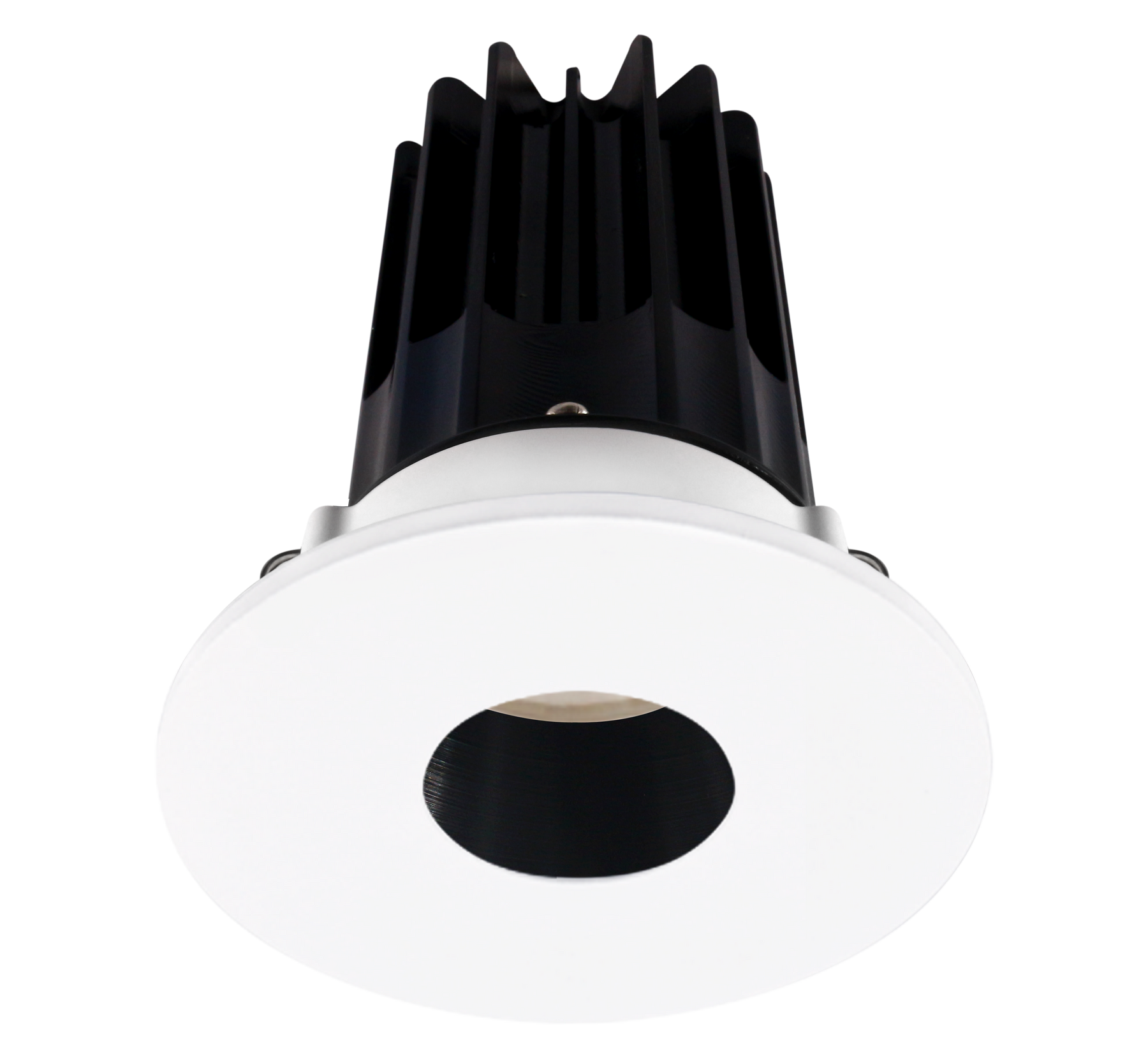

Round 2″ fixture with integral Driver in Connection Box.
One driver for every fixture required.
MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 4 1/2″

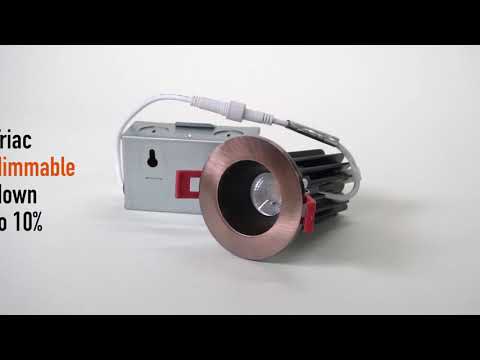

- Default Driver Input Voltage: 120V AC 50/60 Hz (Dimmable – TRIAC Dimmers 10%-100%)
- Energy Used: 15W
- Halogen equivalent: 100W
- Beam Angle: 38°(stock) or 24°(custom)
- Light color options: Warm White 2700K
- Light output: Warm White 980 lm
- Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Approved Locations: Insulated Ceilings & Damp Locations
- Suitable for steam showers and saunas with shower trim 2RST
- Rated: cETLus, Energy Star, T24
DIMENSIONS:
- ID 1 7/8″, OD 3 1/8″; Thickness of Trim 1/8″
- Thickness of Reflectors 1″
- Cut out: 2 3/4″
- Junction Box Dimensions (with driver inside): 3 3/4” x 2 1/4” x 1 1/2”
Suitable for Insulated Ceiling & Damp Locations.
Product Description
CONSTRUCTION:
Round 2″ fixture with integral Driver in Connection Box.
One driver for every fixture required.
MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 4 1/2″
- Default Driver Input Voltage: 120V AC 50/60 Hz (Dimmable – TRIAC Dimmers 10%-100%)
- Energy Used: 15W
- Halogen equivalent: 100W
- Beam Angle: 38°(stock) or 24°(custom)
- Light color options: Warm White 2700K
- Light output: Warm White 980 lm
- Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Approved Locations: Insulated Ceilings & Damp Locations
- Suitable for steam showers and saunas with shower trim 2RST
- Rated: cETLus, Energy Star, T24
DIMENSIONS:
- ID 1 7/8″, OD 3 1/8″; Thickness of Trim 1/8″
- Thickness of Reflectors 1″
- Cut out: 2 3/4″
- Junction Box Dimensions (with driver inside): 3 3/4” x 2 1/4” x 1 1/2”
Suitable for Insulated Ceiling & Damp Locations.
