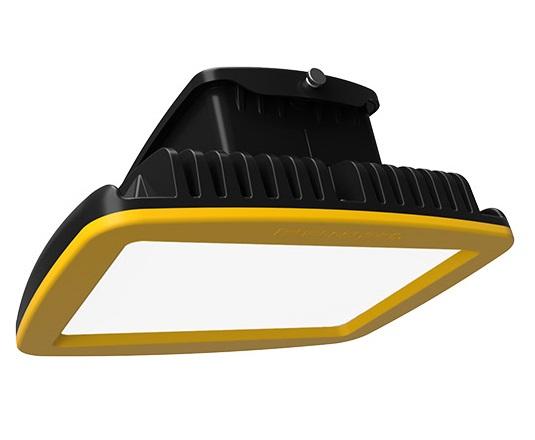

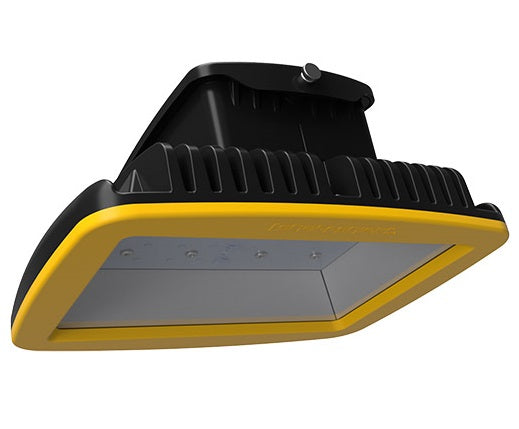

LED Hazardous Location Lighting Fixture, 45 watt

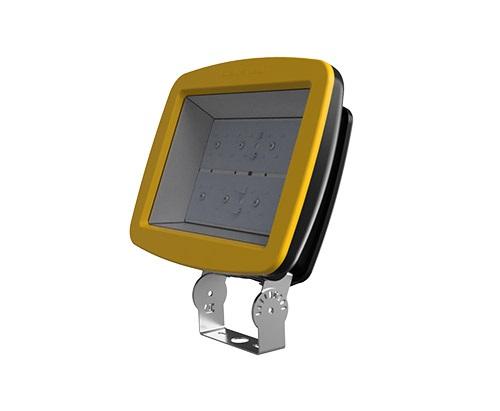

LED Hazardous Location Lighting Fixture w/ Flood Mount
LED Hazardous Location Lighting Fixture w/ Frosted Lens

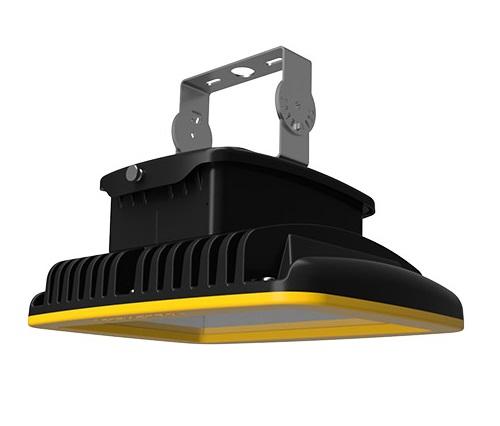

LED Hazardous Location Lighting Fixture w/ Surface Trunion

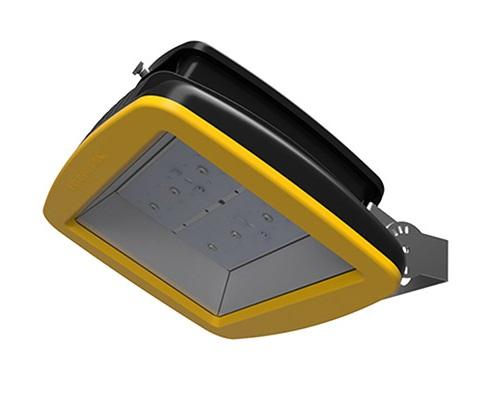

LED Hazardous Location Lighting Fixture w/ Wall Pack Mount
LED Hazardous Location Lighting Fixture, Class 1 Division 2, 45 watt, 120-277V
LED Hazardous Location Lighting Fixture, 45 watt
LED Hazardous Location Lighting Fixture w/ Flood Mount
LED Hazardous Location Lighting Fixture w/ Frosted Lens
LED Hazardous Location Lighting Fixture w/ Surface Trunion
LED Hazardous Location Lighting Fixture w/ Wall Pack Mount
LED Hazardous Location Lighting Fixture, Class 1 Division 2, 45 watt, 120-277V

LED Hazardous Location Lighting Fixture, Class 1 Division 2, 45 watt, 120-277V

ITEM: 045HY
Brand: Shat-R-Shield
Leave a Review
$790.00 $948.00 17% Savings
/

Extra savings for bulk purchases!

×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

045HY


Product Details
  • Brand: Shat-R-Shield
  • Wattage: 45
  • Voltage: 120-277
  • Lumens: 5600
  • CCT: 4000K or 5000K
  • CRI: 70+
  • L70 Life: >60,000 hours
  • 0-10V dimmable
  • Made in USA
  • Listings: DLC, UL wet, NSF, IP66
  • Class 1, Division 2, Groups A, B, C, D
  • Class 2, Division 2, Groups F, G
  • Class 3, Division 1 & 2
  • 5 year warranty

Product Description

Download Chemical Resistance Sheet

The Incoplas LED Hybrid is a durable multi-purpose and corrosion-resistant LED lighting solution that can be used in heavy industrial applications where hazardous location lighting is required. This fixture can replace 100W and 250W metal halide lamps. The Hybrid uses thermally conductive engineered polymers to extract heat away from the light source and its natural convection allows for maximum thermal performance while minimizing energy costs.

Applications
Gas Stations, Grain Elevators, Food Processing, Pet Food Applications, Distilleries, Chemical Plants, Refineries, Pulp and Paper Mills, Power Generation, Waste Water Treatment Plants, Ship Yards, Mines, Petroleum


Specifications

Hazardous Classifications:

Class 1: Flammable gases & liquids
Division 2: The hazardous atmosphere is only available infrequently (i.e. in case of spill).
Groups A, B, C, D: Includes acetylene, hydrogen and similar gases to it, plus common flammable substances such as butane, gasoline, natural gas and propane.
Class 2: Dust
Division 2: The hazardous atmosphere is only available infrequently (i.e. in case of spill).
Groups F, G: Group F contains dusts consisting of or containing carbon or its compounds (i.e. coal), and Group G dusts are non-conductive dusts (i.e. grain, wood or plastic).
Class 3: Fibers or Flyings
Contains easily ignitable fibers or flyings, but the concentration of these fibers or flyings are not suspending in the air in such quantities that would produce ignitable mixtures.


Additional Information

  • Temperature Rating: T3C (Class 1), T4 (Class 2 & 3)
  • Dimensions: 13"L x 10.25"W x 5.6"H
  • Weight: 7.5 lbs
  • Lens: Clear or Frosted Polycarbonate
  • 1/2" Stainless Steel NPT Connector Hub
  • Operating Temperature: -30C (-22F) to 45C (113F)
  • Optional Laminated Glass Lens

Product Description

Download Chemical Resistance Sheet

The Incoplas LED Hybrid is a durable multi-purpose and corrosion-resistant LED lighting solution that can be used in heavy industrial applications where hazardous location lighting is required. This fixture can replace 100W and 250W metal halide lamps. The Hybrid uses thermally conductive engineered polymers to extract heat away from the light source and its natural convection allows for maximum thermal performance while minimizing energy costs.

Applications
Gas Stations, Grain Elevators, Food Processing, Pet Food Applications, Distilleries, Chemical Plants, Refineries, Pulp and Paper Mills, Power Generation, Waste Water Treatment Plants, Ship Yards, Mines, Petroleum


Specifications

Hazardous Classifications:

Class 1: Flammable gases & liquids
Division 2: The hazardous atmosphere is only available infrequently (i.e. in case of spill).
Groups A, B, C, D: Includes acetylene, hydrogen and similar gases to it, plus common flammable substances such as butane, gasoline, natural gas and propane.
Class 2: Dust
Division 2: The hazardous atmosphere is only available infrequently (i.e. in case of spill).
Groups F, G: Group F contains dusts consisting of or containing carbon or its compounds (i.e. coal), and Group G dusts are non-conductive dusts (i.e. grain, wood or plastic).
Class 3: Fibers or Flyings
Contains easily ignitable fibers or flyings, but the concentration of these fibers or flyings are not suspending in the air in such quantities that would produce ignitable mixtures.


Additional Information

  • Temperature Rating: T3C (Class 1), T4 (Class 2 & 3)
  • Dimensions: 13"L x 10.25"W x 5.6"H
  • Weight: 7.5 lbs
  • Lens: Clear or Frosted Polycarbonate
  • 1/2" Stainless Steel NPT Connector Hub
  • Operating Temperature: -30C (-22F) to 45C (113F)
  • Optional Laminated Glass Lens
