LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V
  • Spec Sheet Download
    • ×
    IES File Request

    • ×
    Request Installation Instructions

LED Semi-Circle Up/Down Wall Pack, 11,600 Lumen Max, CCT and Wattage Selectable, Integrated Photocell, 120-347V

ITEM: LED-WPUD-SC-3P80-TRI-BZ-PC
Brand: Envision
UPC: 810143711479
Leave a Review
$224.99 $269.99 17% Savings
/

Extra savings for bulk purchases!

×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

LED-WPUD-SC-3P80-TRI-BZ-PC


Product Details
  • Brand: Envision
  • Wattage: 48W/64W/80W
  • Lumens: 6,960/9.280/11,600 LM
  • CCT Selectable: 3000K/4000K/5000K
  • Beam Angle: Type III (Standard)
  • CRI: 80
  • Voltage: 120-347V
  • BUG: B3-U2-G2
  • Average life (L70) of 70,000 hours
  • Operating Temperature: -40° - 122° F
  • Ratings: cULus Listed, DLC Listed, ROHS
  • Warranty: 5 Year Limited Warranty

  • Usually Ships In

    3-5 Business Days

  • QUESTIONS? Let us help!

Product Description

FEATURES:

  • Wattage: 48W/64W/80W
  • Lumens: 6,960/9.280/11,600 LM
  • CCT Selectable: 3000K/4000K/5000K
  • CRI: 80
  • Voltage: 120-347V
  • Warranty: 5 Year Limited Warranty
  • Average life (L70) of 70,000 hours
  • Operating Temperature: -40° - 122° F
  • Lens: Clear acrylic with optics
  • Beam Angle: Type III (Standard)

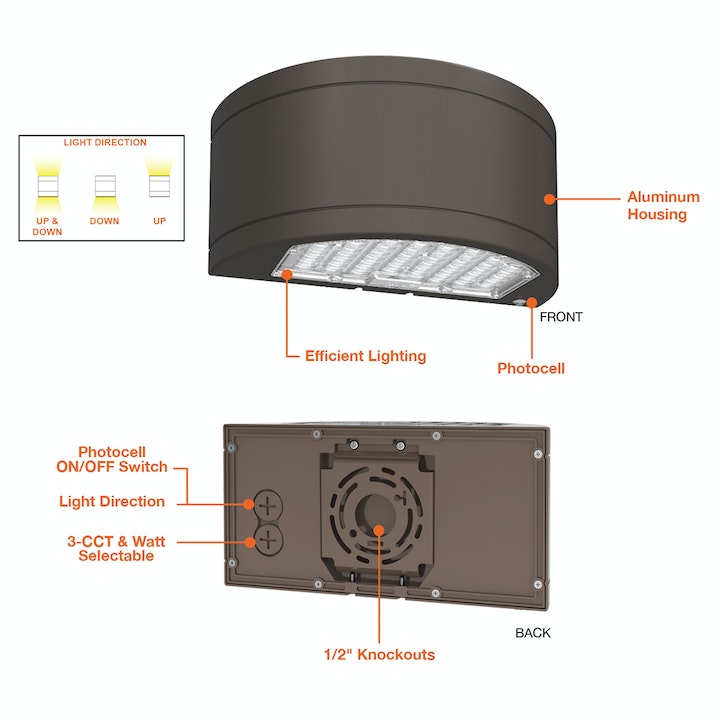

  • Sturdy die-cast aluminum housing finished with corrosion free powder coat
  • Uplight can be turned off
  • Full Cut-Off Dark Sky Compliant
  • Photocell is included with an on/off switch
  • Instant-On to full brightness
  • Ratings: UL Listed, DLC Listed, ROHS

APPLICATIONS:

  • Walkways & Pathways
  • Parking Lots
  • Hospitality, Multi-Family
  • Outdoor Corridors
  • Residential, Commercial and Industrial

Product Description

FEATURES:

  • Wattage: 48W/64W/80W
  • Lumens: 6,960/9.280/11,600 LM
  • CCT Selectable: 3000K/4000K/5000K
  • CRI: 80
  • Voltage: 120-347V
  • Warranty: 5 Year Limited Warranty
  • Average life (L70) of 70,000 hours
  • Operating Temperature: -40° - 122° F
  • Lens: Clear acrylic with optics
  • Beam Angle: Type III (Standard)
  • Sturdy die-cast aluminum housing finished with corrosion free powder coat
  • Uplight can be turned off
  • Full Cut-Off Dark Sky Compliant
  • Photocell is included with an on/off switch
  • Instant-On to full brightness
  • Ratings: UL Listed, DLC Listed, ROHS

APPLICATIONS:

  • Walkways & Pathways
  • Parking Lots
  • Hospitality, Multi-Family
  • Outdoor Corridors
  • Residential, Commercial and Industrial
