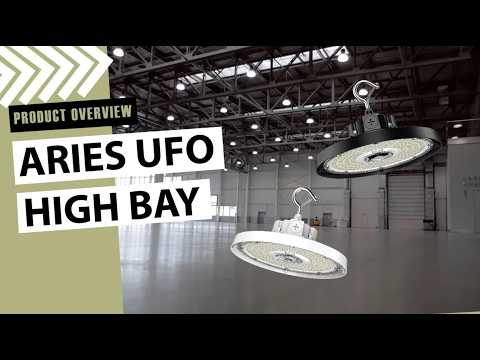

Aries G6 LED UFO High Bay, 22,500 Lumen Max, Wattage, CCT, and Optic Selectable, Black Finish, Comparable to 320-400 Watt HID Fixture, 120-277V

ITEM: WL-IUFO-150W-3WS-3CCT-3OPT-DM010-BK-G6
Brand: WareLight
UPC: 682157331048
$119.99 Regular price $143.99 17% Savings Sale price
/



BuyGetPrice
3 3+5%off$114.00
10 10+10%off$108.00
15 15+12%off$105.60

Extra savings for bulk purchases!

Product Details
  • Brand: WareLight
  • Wattage Selectable: 100W/120W/150W
  • Lumens Selectable: 15,000/18,000/22,500
  • CCT Selectable: 3500K/4000K/5000K
  • Voltage: 120-277V
  • Beam Angle: 3-in-1 Optic 60/80/100°
  • 0-10V Dimming; Dim to Off
  • CRI: >80
  • WareSense Blue Compatible
  • Includes factory installed 6ft whip and quick-connect 3ft cord with 120V straight blade plug (5-15P)
  • A quick-connect 3ft cord with 277V twist lock plug is available (L7-15P)
  • Only one remote per project needed with purchase of sensor
  • Life: 50,000 Hrs
  • Black & Aluminum Reflector: 6"H x 18 3/4"D
  • Prismatic Reflector: 8"H x 16 1/8"D
  • Listings: DLC Premium, cULus, IP65
  • 5 year warranty

  • Usually Ships In

    1-3 Business Days

  • QUESTIONS? Let us help!


Similar Products

Product Description

If you want round high-bay LED lights with proven reliability and performance in the most demanding commercial environments, the Aries LED high bay is the only name you need to know.

Customer-tested and approved in thousands of warehouses, big box retail locations, manufacturing facilities, aircraft hangars, and more, it would be easy to rest on our laurels with this top-selling UFO high bay light.

Instead, we created a third-generation “G6” model that’s more efficient, better performing, and now offers a host of smart features to enhance their user-friendliness and customizability.

In other words, if you want reliable, high-quality illumination of a tall ceiling application, look no further than the Aries UFO LED Lights.

Key Features:

  • Newly Redesigned 3 in 1 Optics for 60/80/100° Degrees of Light Distribution
  • Choice of Black or White Housing
  • 3-Way Selectable Wattage
    • 150W Option: 100W/120W/150W
      • Lumens: 15,000/18,000/22,500
    • 240W Option: 150W/200W/240W
      • Lumens: 30,000/33,000/36,000
    • 3-Way Selectable Color Temperature (CCT): 3500K/4000K/5000K
    • Full Selection of Reflector Options: Prismatic, Aluminum, and Aluminum Black
    • Includes Factory Installed 6ft Whip and Quick-Connect 3ft Cord With 120v Straight Blade Plug (5-15P)
    • Optional Emergency Battery Backup with Remote
    • Integrated socket for Plug-and-Play Optical Microwave or PIR Occupancy/Daylight Sensor (optional, sold separately)
    • DLC Premium, UL and IP65
    • Ideal For Warehouses, Workshops, Convention Centers, Gymnasiums, Factories, and Other Industrial and Commercial Indoor Areas.



Product Description

If you want round high-bay LED lights with proven reliability and performance in the most demanding commercial environments, the Aries LED high bay is the only name you need to know.

Customer-tested and approved in thousands of warehouses, big box retail locations, manufacturing facilities, aircraft hangars, and more, it would be easy to rest on our laurels with this top-selling UFO high bay light.

Instead, we created a third-generation “G6” model that’s more efficient, better performing, and now offers a host of smart features to enhance their user-friendliness and customizability.

In other words, if you want reliable, high-quality illumination of a tall ceiling application, look no further than the Aries UFO LED Lights.

Key Features:

  • Newly Redesigned 3 in 1 Optics for 60/80/100° Degrees of Light Distribution
  • Choice of Black or White Housing
  • 3-Way Selectable Wattage
    • 150W Option: 100W/120W/150W
      • Lumens: 15,000/18,000/22,500
    • 240W Option: 150W/200W/240W
      • Lumens: 30,000/33,000/36,000
    • 3-Way Selectable Color Temperature (CCT): 3500K/4000K/5000K
    • Full Selection of Reflector Options: Prismatic, Aluminum, and Aluminum Black
    • Includes Factory Installed 6ft Whip and Quick-Connect 3ft Cord With 120v Straight Blade Plug (5-15P)
    • Optional Emergency Battery Backup with Remote
    • Integrated socket for Plug-and-Play Optical Microwave or PIR Occupancy/Daylight Sensor (optional, sold separately)
    • DLC Premium, UL and IP65
    • Ideal For Warehouses, Workshops, Convention Centers, Gymnasiums, Factories, and Other Industrial and Commercial Indoor Areas.



Frequently Asked Questions: Aries G5 LED UFO High Bay

The Aries G5 is engineered for ceiling heights typically ranging from 20 to 40 feet, the range where a UFO high bay delivering up to 22,500 lumens at 150W performs most effectively. As a general planning benchmark, spaces with 20-foot ceilings need roughly 15,000–20,000 lumens per fixture, while ceilings at 25 feet and above benefit from 20,000+ lumens. For spacing, a common starting point is one fixture per 12–15 feet horizontally at 20-foot mounting heights. For a precise fixture count and layout tailored to your specific square footage and application, Warehouse Lighting offers free lighting layout estimates or call a lighting pro at 888-454-4480.

The Aries G5's selectable wattage lets you right-size output to your space rather than buying separate fixtures. At 100W, the fixture produces 15,000 lumens, suitable for lower ceiling heights or spaces where foot-candle requirements are more modest. At 120W, it outputs 18,000 lumens, a solid middle ground for standard warehouse and manufacturing environments in the 20–25 foot range. At 150W (the maximum), it delivers the full 22,500 lumens, the right choice for ceilings at 25 feet and above, or spaces requiring higher light levels such as assembly lines, automotive bays, or gyms. All three wattage levels maintain a consistent 150 LM/W efficacy rating, so you're never sacrificing efficiency by stepping up.

Reflectors shape where the light goes. They don't increase total lumens, but they concentrate them to improve foot-candles on the work surface below. Without a reflector, the Aries G5's 3-in-1 optic distributes light at 60°, 80°, or 110° (selectable), which works well for general open-area illumination. Adding an aluminum reflector narrows and redirects the beam downward, making it a popular choice for standard warehouse and storage applications where you want more light on the floor. The prismatic reflector produces a similar controlled spread with a classic industrial high bay appearance many facilities managers prefer. Adding a conical lens to either reflector option further tightens the beam, which is ideal for very high ceilings or applications like automotive lifts and machinery bays where you need concentrated illumination on a specific zone. If you're unsure, the aluminum reflector without a conical lens is the most versatile starting point for most warehouse and industrial spaces.

Both sensors automate the fixture to dim or shut off when an area is unoccupied, but they use different technologies and suit different environments. A PIR sensor detects changes in body heat. It's cost-effective, produces fewer false triggers, and works well in defined areas with a direct line of sight to occupants, such as break rooms or clearly defined work cells. However, PIR performance can degrade at higher mounting heights and in hot environments (near heat-generating machinery, for example), since it relies on distinguishing body heat from ambient temperature. A microwave sensor emits a signal and reads the reflection. It works reliably at the mounting heights typical of industrial high bay applications, performs consistently across a wide temperature range, and can detect movement even around partial obstructions like shelving or racking. For most industrial high bay installations, the microwave sensor is the more dependable choice. The WareSense Blue Bluetooth sensor adds wireless control via smartphone, with only one remote needed per project, making it the right pick for larger installations where you'll want to fine-tune sensitivity, time delays, and dim levels across multiple fixtures without climbing a ladder.

Yes, the Aries G5 carries DLC Premium v5.1 certification, the qualification most U.S. utility companies require for a fixture to be eligible for energy efficiency rebates and incentives. This can meaningfully offset your upfront project cost, sometimes by hundreds or thousands of dollars on a larger installation. Warehouse Lighting offers energy rebate assistance to help you identify and apply for programs available in your area. If you're buying in volume for a commercial or industrial retrofit, it's worth exploring before you purchase. Rebate amounts vary by utility and region, and DLC Premium status puts the Aries G5 in the highest qualifying tier.

>
